application
DTLV -0.1 motor-driven push-rod flat gate is Nantong China-Mining improve products, widely used in building material, metallurgy, mining and other industries, is the ideal control dust material flow equipment.
Second, working principle
DTLV -0.1 motor-driven push-rod flat gate mainly by the frame, gate, DDT motor-driven push-rod etc parts. Work, driven by electricity connecting thrust role for wedge horizontal reciprocating motion, reach the valve opening and closing purpose.
Third, the main property parameter
|
Nominal pressure
|
Suitable temperature
|
Suitable media
|
|
0.1-0.6MPa
|
≤150℃
|
Dust material
|

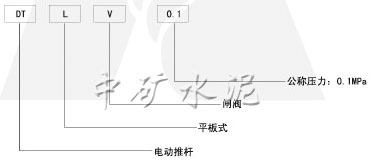

Four, model establishment instructions

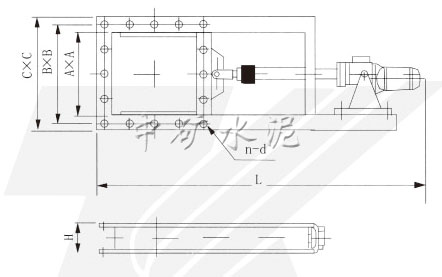

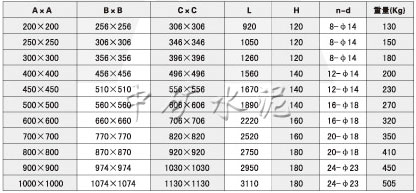

Five, the main appearance and connection size
