Ⅰ、Application
TDSZ motorized and hydraulic fan valve is used as an ideal discharge device of dust removing equipment of bottom silo for cement clinker according to the special requests of building material industry.
TDSZ motorized and hydraulic fan valve is used as an ideal discharge device of dust removing equipment of bottom silo for cement clinker according to the special requests of building material industry.
Ⅱ、Character
TDSZ motorized and hydraulic fan valve is designed a dust guard at the position of outlet opening, avoiding dust scattering. Using motorized and hydraulic handspike instead of pneumatic driving as power source, it saves investment cost. The valve body is used step structure and it reduces the crushing of material flow. The key position of valve body is arranged abrasion lining plate of the fence structure, reducing direct abrasion of lining plate.
Ⅲ、Capacity parameter
|
Suitable media
|
Dry powder
|
|
Work temperature
|
≤150℃
|
|
Dust discharge volume
|
6-80m2/h
|
|
Type
|

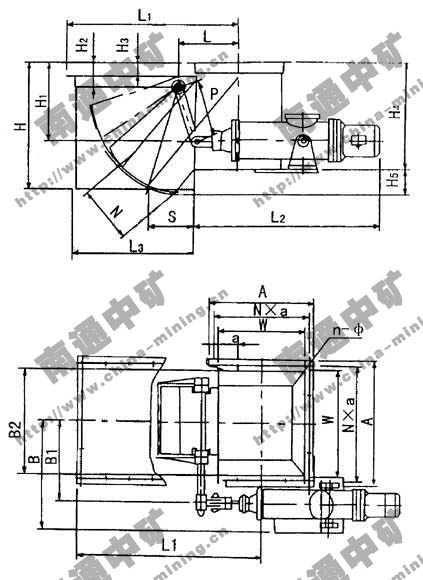

Main dimension(mm)
|
Type of Motorized and hydraulic handspike
|
Power KW
|
|||||||||||||||||||
|
W
|
A
|
A1
|
A2
|
B
|
B1
|
B2
|
L
|
L1
|
L2
|
L3
|
H
|
H1
|
H2
|
H3
|
H4
|
H5
|
P
|
N×a
|
n×Φ
|
|||
|
TDSZ-30
|
300
|
400
|
120
|
150
|
350
|
470
|
300
|
300
|
800
|
1175
|
600
|
380
|
429
|
170
|
60
|
340
|
150
|
280
|
2×175
|
8-18
|
DYZ700-280/110-P
|
1.1
|
|
TDSZ-40
|
400
|
500
|
220
|
250
|
400
|
520
|
400
|
350
|
900
|
1175
|
650
|
540
|
429
|
170
|
60
|
480
|
140
|
280
|
3×150
|
12-18
|
DYTZ700-280/110-P
|
1.5
|
|
TDSZ-50
|
500
|
626
|
320
|
350
|
450
|
570
|
500
|
400
|
1050
|
1220
|
737
|
680
|
513
|
190
|
70
|
610
|
120
|
350
|
4×140
|
16-18
|
DYTZ700-300/110-P
|
1.5
|
|
TDSZ-60
|
600
|
726
|
360
|
390
|
500
|
620
|
600
|
450
|
1200
|
1220
|
837
|
750
|
513
|
190
|
70
|
670
|
150
|
350
|
4×165
|
16-18
|
DYTZ700-300/110-P
|
2.2
|
|
TDSZ-70
|
700
|
840
|
460
|
490
|
550
|
670
|
700
|
500
|
1400
|
1340
|
980
|
900
|
560
|
190
|
80
|
820
|
150
|
400
|
5×154
|
20-22
|
DYTZ700-350/110-P
|
2.2
|
|
TDSZ-80
|
800
|
940
|
560
|
590
|
600
|
720
|
800
|
550
|
1550
|
1340
|
1080
|
1050
|
560
|
190
|
80
|
950
|
150
|
400
|
5×174
|
20-22
|
DYTZ700-350/110-P
|
2.2
|
