●Introduction

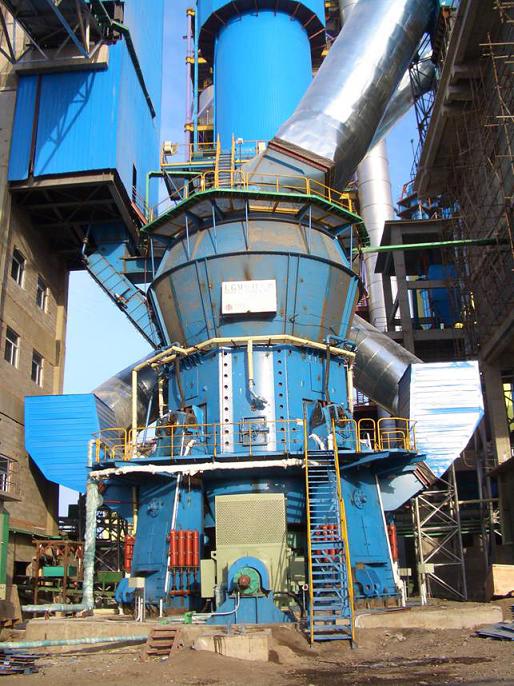

HJ Vertical mill is one kind of roller mill. As requested, it may equip with 3 or 4 rollers. Each roller is composed of fixed roller, support of installation rocker arm and hydraulic system. Motive force unit is in the whole or a standard part. It can be arranged in two components, three components or four components around mill disc.
● Work Principle
Raw material feed into discharge pipe through rotary discharger. Discharge pipe enter into the mill through the side or the center of the separator. Material will fall into the center of mill disc with the help of gravity and air flow. Mill disc connect with the reducer constantly. Constant speed rotation of mill disc will distribute material evenly in the lining plate of mill disc. There inclined mill roller will bite material and pulverize. Grind material with the function of pressure and friction.
Centrifugal force will make pulverized material at the edge of mill disc from the middle of mill disc. Material off mill disc will enter into hot gas in the mill through air ring. Via the middle of the mill shell and enter into the Sepratator.During the process, material will exchange hot gas.The moisture will be evaporated.The rest moisture can reach 1%. Unpulverized material as request will be selected by the Separator and send back mill disc.
● Features
◎ low noise
◎ Low energy consumption
◎ Quick control response
◎ The vibration is small from start to stop.
◎ Strong adaptability
◎ Small covering area
◎ Easy adjustment
◎ Excellent dry grinding capacity
◎ Easy maintenance (no need to dismantle and can replace easily worn-out parts.)
◎ Grind all kinds of different material.
● Standard parameter of HJMS slag vertical mill
HJ Vertical mill is one kind of roller mill. As requested, it may equip with 3 or 4 rollers. Each roller is composed of fixed roller, support of installation rocker arm and hydraulic system. Motive force unit is in the whole or a standard part. It can be arranged in two components, three components or four components around mill disc.
● Work Principle
Raw material feed into discharge pipe through rotary discharger. Discharge pipe enter into the mill through the side or the center of the separator. Material will fall into the center of mill disc with the help of gravity and air flow. Mill disc connect with the reducer constantly. Constant speed rotation of mill disc will distribute material evenly in the lining plate of mill disc. There inclined mill roller will bite material and pulverize. Grind material with the function of pressure and friction.
Centrifugal force will make pulverized material at the edge of mill disc from the middle of mill disc. Material off mill disc will enter into hot gas in the mill through air ring. Via the middle of the mill shell and enter into the Sepratator.During the process, material will exchange hot gas.The moisture will be evaporated.The rest moisture can reach 1%. Unpulverized material as request will be selected by the Separator and send back mill disc.
● Features
◎ low noise
◎ Low energy consumption
◎ Quick control response
◎ The vibration is small from start to stop.
◎ Strong adaptability
◎ Small covering area
◎ Easy adjustment
◎ Excellent dry grinding capacity
◎ Easy maintenance (no need to dismantle and can replace easily worn-out parts.)
◎ Grind all kinds of different material.
● Standard parameter of HJMS slag vertical mill
|
Mill model
|
Main technical parameter and capacity of the mill
|
|||||||
|
Dia. Of mill disc
(mm)
|
Dia. of track of mill disc
d(mm)
|
Average diameter of mill roller
(mm)
|
Number of mill roller
(-)
|
Speed of mill disc
(rpm)
|
Capacity
(t/h)
|
Loading power
(kW)
|
||
|
HJMS50.41
|
5,000
|
4,266
|
2,360
|
4
|
(2+2)
|
25.9
|
120
|
3500
|
|
HJMS46.41
|
4,600
|
3,908
|
2,240
|
4
|
(2+2)
|
27.0
|
100
|
3150
|
|
HJMS43.41
|
4,300
|
3,608
|
2,120
|
4
|
(2+2)
|
27.9
|
85
|
2800
|
|
HJMS40.41
|
4,000
|
3,411
|
1,900
|
4
|
(2+2)
|
29.0
|
75
|
2000
|
|
HJMS35.41
|
3,500
|
2,932
|
1,800
|
4
|
(2+2)
|
30.9
|
60
|
1800
|
|
HJMS34.41
|
3,400
|
2,868
|
1,700
|
4
|
(2+2)
|
31.4
|
50
|
1600
|
|
HJMS32.41
|
3,200
|
2,694
|
1,600
|
4
|
(2+2)
|
32.4
|
45
|
1400
|
|
HJMS30.41
|
3,000
|
2,520
|
1,500
|
4
|
(2+2)
|
33.4
|
40
|
1250
|
|
HJMS28.41
|
2,800
|
2,346
|
1,400
|
4
|
(2+2)
|
34.6
|
35
|
1000
|
Remarks: Elevation basis of mill capacity
(1) Middle and easy abrasive of raw material(MFs) = 0.9～1.0 ；
(2) Moisture of raw material is 15%.
(3) Granularity of fine material: 4200～4500cm2/g
(4) Moisture of fine material: 0.5～1.0 %；
● Technical parameter of HJCM standard coal vertical mill(Anthracite vertical mill will be discussed in another)
(1) Middle and easy abrasive of raw material(MFs) = 0.9～1.0 ；
(2) Moisture of raw material is 15%.
(3) Granularity of fine material: 4200～4500cm2/g
(4) Moisture of fine material: 0.5～1.0 %；
● Technical parameter of HJCM standard coal vertical mill(Anthracite vertical mill will be discussed in another)
|
Mill model
|
Main technical parameter and capacity of the mill
|
|||||
|
Mill discD(mm)
|
Average diameter of mill roller(mm)
|
Number of mill rollern
|
Speed of mill discN(rpm)
|
Standard capacityQ(t/h)
|
Loading powerP(kW)
|
|
|
HJCM35.30
|
3500
|
1900
|
3
|
30.9
|
70
|
1400
|
|
HJCM30.30
|
3000
|
1900
|
3
|
33.4
|
65
|
1250
|
|
HJCM28.30
|
2800
|
1750
|
3
|
34.6
|
55
|
1000
|
|
HJCM26.30
|
2600
|
1600
|
3
|
35.9
|
45
|
810
|
|
HJCM23.30
|
2300
|
1450
|
3
|
38.2
|
35
|
640
|
|
HJCM22.30
|
2200
|
1400
|
3
|
39
|
30
|
590
|
|
HJCM20.30
|
2000
|
1250
|
3
|
40.9
|
20
|
430
|
|
HJCM16.30
|
1600
|
1000
|
3
|
45.8
|
12
|
250
|
Remarks: Elevation standard of mill capacity
(1) Easy grindability of raw material HGI= 55~60 ；
(2) The moisture of raw material is 10%；
(3) Grain of fine powder ：80mmR3%
(4) Moisture of fine powder: 0.5～1.0 %
● Technical parameter list of HJRM raw material vertical mill
(1) Easy grindability of raw material HGI= 55~60 ；
(2) The moisture of raw material is 10%；
(3) Grain of fine powder ：80mmR3%
(4) Moisture of fine powder: 0.5～1.0 %
● Technical parameter list of HJRM raw material vertical mill
|
Mill model
|
Mill disc
D(mm)
|
Average diameter of mill roller
(mm)
|
Number of mill roller n
|
Speed of mill disc N(rpm)
|
Loading power
P(kW)
|
Standard capacity Q(t/h)
|
Guarantee capacity Q(t/h)
|
Equip with cement production line TPD
|
|
HJRM13.20
|
1,300
|
1,100
|
2
|
43
|
200
|
25
|
20
|
|
|
HJRM16.20
|
1,600
|
1,180
|
2
|
45.77
|
200
|
26.4
|
22
|
|
|
HJRM18.30
|
1,800
|
1,120
|
3
|
43.16
|
330
|
43.9
|
37
|
|
|
HJRM19.30
|
1,900
|
1,180
|
3
|
42.01
|
380
|
50.4
|
43
|
|
|
HJRM20.30
|
2,000
|
1,250
|
3
|
40.94
|
430
|
57.8
|
49
|
|
|
HJRM22.30
|
2,200
|
1,400
|
3
|
39.04
|
580
|
77
|
65
|
|
|
HJRM23.30
|
2,300
|
1,450
|
3
|
38.18
|
630
|
83.5
|
71
|
|
|
HJRM26.30
|
2,600
|
1,600
|
3
|
35.91
|
810
|
108.1
|
92
|
~
|
|
HJRM30.30
|
3,000
|
1,700
|
3
|
33.43
|
950
|
126.9
|
108
|
|
|
HJRM30.40
|
3,000
|
1,400
|
4
|
33.43
|
1,100
|
160.8
|
137
|
~2000
|
|
HJRM32.40
|
3,200
|
1,400
|
4
|
32.37
|
1,200
|
168.7
|
143
|
|
|
HJRM32.40
|
3,200
|
1,500
|
4
|
32.37
|
1,300
|
188.7
|
160
|
|
|
HJRM34.40
|
3,400
|
1,500
|
4
|
31.4
|
1,400
|
197.3
|
168
|
2000
|
|
HJRM36.42
|
3,600
|
1,700
|
4
|
30.52
|
1,600
|
231.7
|
197
|
2500、3000
|
|
HJRM38.42
|
3,800
|
1,700
|
4
|
29.7
|
1,900
|
266
|
226
|
|
|
HJRM40.42
|
4,000
|
1,800
|
4
|
28.95
|
2,100
|
307
|
261
|
3500、4000
|
|
HJRM43.42
|
4,300
|
1,900
|
4
|
27.92
|
2,500
|
357.4
|
304
|
|
|
HJRM46.42
|
4,600
|
2,060
|
4
|
27
|
3,100
|
436.2
|
371
|
4500
|
|
HJRM48.41
|
4,800
|
1,900
|
4
|
26.43
|
2,700
|
386.5
|
329
|
|
|
HJRM48.42
|
4,800
|
2,060
|
4
|
26.43
|
3,100
|
449.8
|
382
|
4500、5000
|
|
HJRM50.41
|
5,000
|
2,240
|
4
|
25.89
|
3,600
|
516.3
|
439
|
|
|
HJRM53.41
|
5,300
|
2,360
|
4
|
25.15
|
4,200
|
595.6
|
506
|
～6000
|
|
HJRM53.42
|
5,300
|
2,500
|
4
|
25.15
|
4,400
|
630.6
|
536
|
6000～7000
|
|
HJRM56.42
|
5600
|
2,500
|
4
|
24.47
|
4,600
|
655.7
|
557
|
Remarks: Basic standard of mill selection:
(1) Middle easy abrasive of raw material (MF) = 0.9～1.0
(2) The Max. moisture of raw material is 7%.
(3) The grain of fine material is 80μmR 12~15 %.
(4) The moisture of fine material is 0.5～1.0 %.
(5) The above condition suits limestone grinding and select it according to the character of the material.
● Partical achievement list
|
Unit Name
|
Specification
|
Quantity
|
|
Nantong Lianrong Group
|
HJRM 13.20
|
1
|
|
Thang Loi Casting Mechanical Co., Ltd Vietnam Nanang Hill II project
|
HJRM32.30
|
1
|
|
Shanxi Hancheng Qinxing Cement Co., Ltd.
|
HJRM13.20
|
1
|
|
hang Loi Casting Mechanical Co., Ltd Vietnam Nanang Hill II project
|
HJMS32.40S
|
1
|
|
Jiamusi Northern Cement Co., Ltd (Dongfeng branch)
|
HJMS32.40S
|
1
|
|
Saudi Arabia Cement Company
|
HJCM35.30
|
1
|
|
Saudi Arabia AL-GHBRAH cement plant
|
HJRM43.42
|
1
|
|
Vietnam Anpei cement plant
|
HJMS40.41
|
1
|
|
Cementos Tequendama S.A., Bogota Colombia South America
|
HJRM43.41
|
1
|
|
Vietnam Fuxin cement plant
|
HJMS35.41
|
1
|
